BOAT HOUSE SITE ANALYSIS/REPRESENTATIONS
Here is an analysis of the spacial requirement for each use of the space
in the section I am focusing on. Each box represents an individual and the
groups are the potential amount necessary for the use of the space.
The red signifies living space, purple driving, blue running, green sitting, and
yellow playing. The heights are respective of the height of person when in that space.

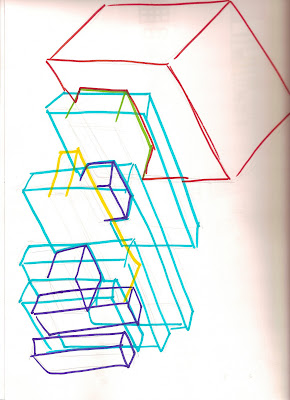

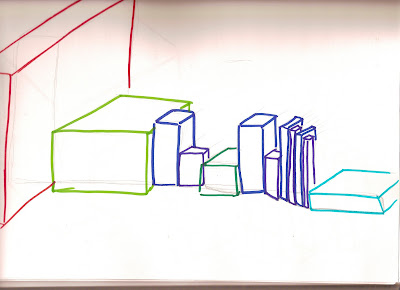

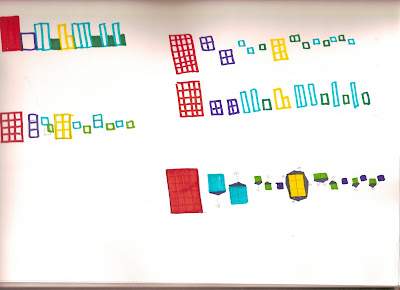

The first is a plan and sectional analysis with two 3 dimensional representations.
